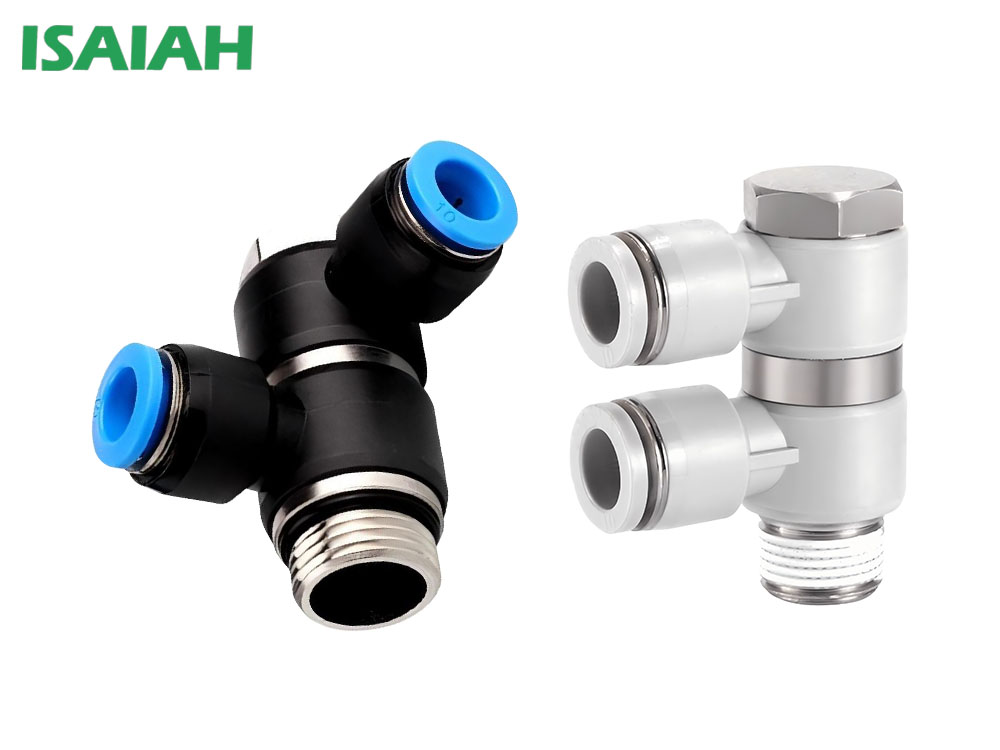

IPHT塑料F型串联直角单螺纹气管接头

IPHT塑料串联直角快插式气动管接头，有一拖二、一拖三两种规格，每种规格都有多种型可供选择，广泛应用于各类气动系统。高强度塑料壳体耐腐蚀、抗冲击；全铜镀镍螺纹自带密封胶，无需手缠生料带，方便连接气缸。安装便捷，即使安装后接头和管体也可360°旋转。

IPHT塑料F型串联直角单螺纹接头的技术参数：

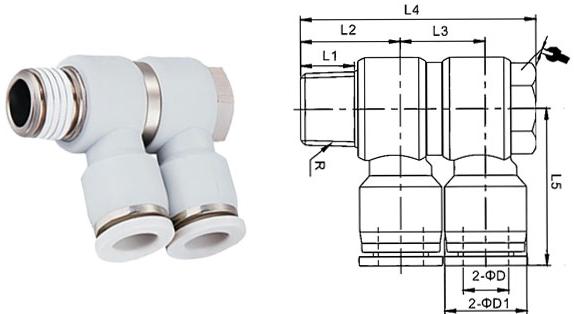

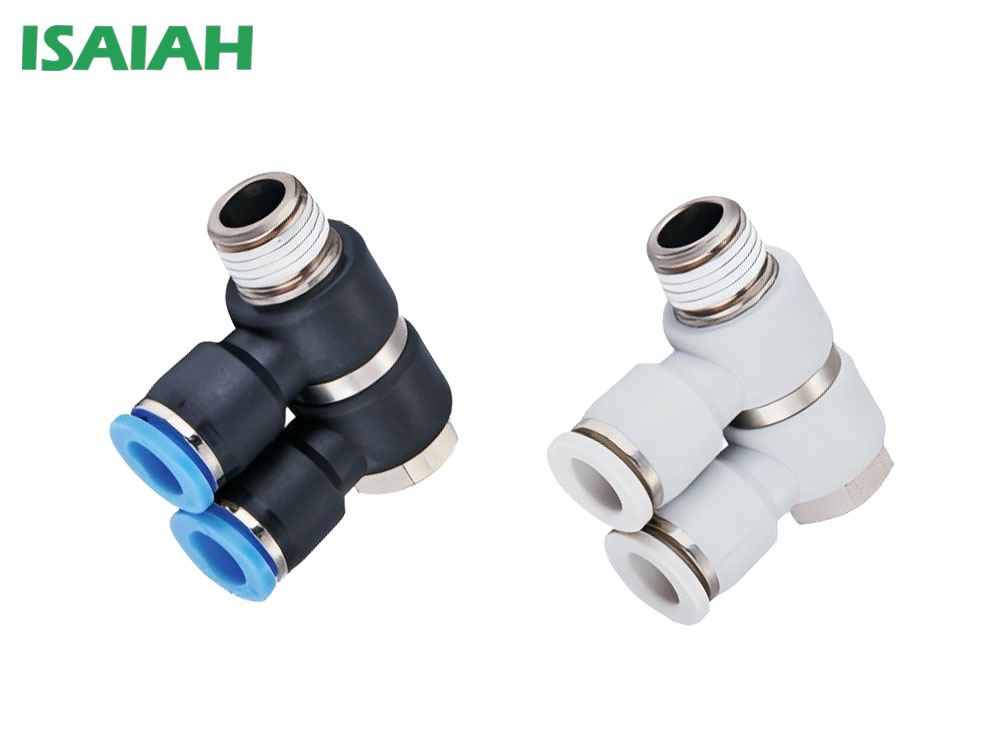

IPHT一拖二串联直角单螺纹接头的规格型号表：

型号	￠D	R	L1	L2	L3	L4	￠D1
IPHT04-01(2)	4	R1/8	7.5	14	15	38.5	11.5	12
IPHT04-02(2)		R1/4	9.5	16.5	15	41.5	11.5	14
IPHT06-01(2)	6	R1/8	7.5	14	15	38.5	13.5	12
IPHT06-02(2)		R1/4	9.5	16.5	15	41.5	13.5	14
IPHT06-03(2)		R3/8	10.5	18.5	15.7	49.5	13.5	19
IPHT06-04(2)		R1/2	13.5	25.5	21.5	60	13.5	24
IPHT08-01(2)	8	R1/8	7.5	14.5	15	38.5	15	12
IPHT08-02(2)		R1/4	9.5	17.5	15	41.5	15	14
IPHT08-03(2)		R3/8	10.5	18.5	15.7	49.5	15	19
IPHT08-04(2)		R1/2	13.5	25.5	21.5	60	15	24
IPHT10-01(2)	10	R1/8	7.5	18	19	42.5	19	12
IPHT10-02(2)		R1/4	9.5	18.5	21.5	48	19	14
IPHT10-03(2)		R3/8	10.5	20.5	21.5	53.5	19	19
IPHT10-04(2)		R1/2	13.5	25.5	21.5	60	19	24
IPHT12-02(2)	12	R1/4	9.5	18.5	21.5	48	21.5	14
IPHT12-03(2)		R3/8	10.5	22.2	21.5	53.5	21.5	19
IPHT12-04(2)		R1/2	13.5	25.5	21.5	60	21.5	24

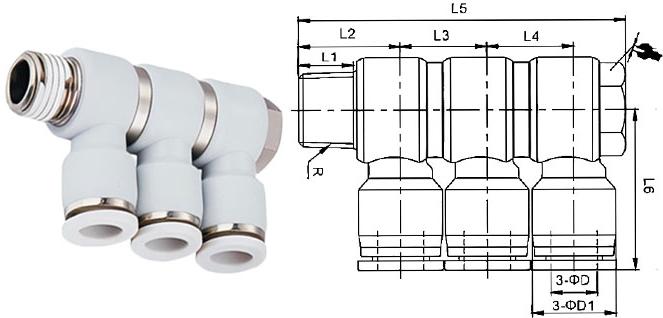

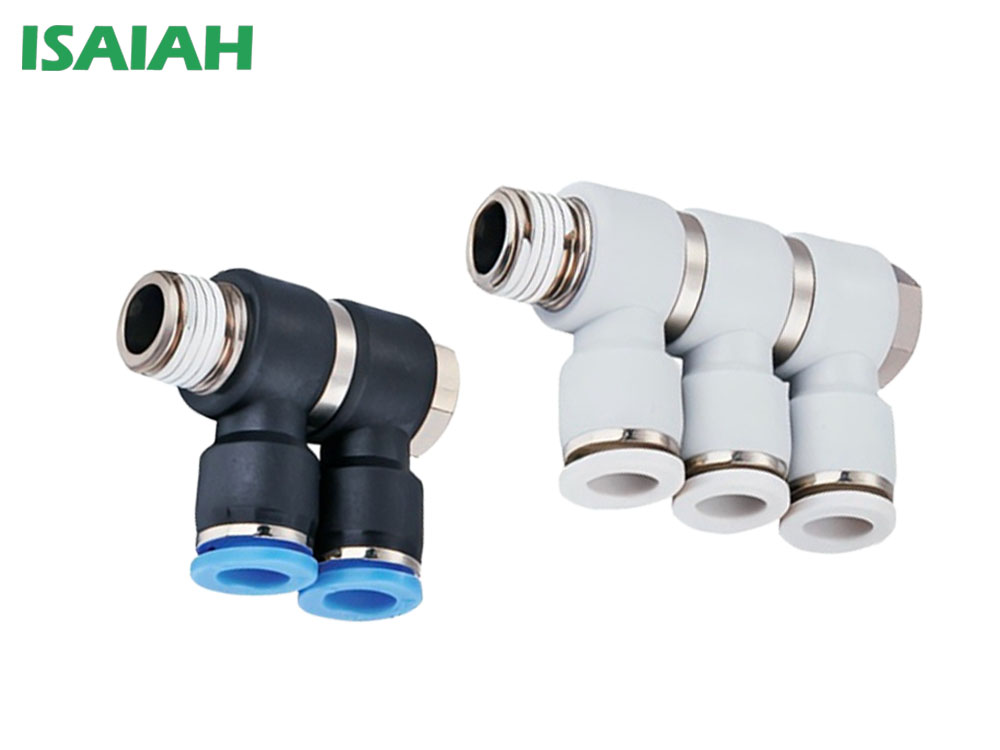

IPHT一拖三串联直角单螺纹接头的规格型号表：

型号	￠D	R	L1	L2	L3	L4	L5	L6	￠D1
IPHT04-01(3)	4	R1/8	7.5	14	15	15	53	23.5	11.5	12
IPHT04-02(3)		R1/4	9.5	16.5	15	15	56.5	25.5	11.5	14
IPHT06-01(3)	6	R1/8	7.5	14	15	15	53	23.5	13.5	12
IPHT06-02(3)		R1/4	9.5	16.5	15	15	56.5	25.4	13.5	14
IPHT06-03(3)		R3/8	10.5	18.5	15.7	15.7	65.3	29.5	13.5	19
IPHT08-01(3)	8	R1/8	7.5	14.5	15	15	53	26.5	15	12
IPHT08-02(3)		R1/4	9.5	17.5	15	15	56.5	29	15	14
IPHT08-03(3)		R3/8	10.5	18.5	15.7	15.7	65.3	30	15	19
IPHT08-04(3)		R1/2	13.5	25.5	21.5	21.5	81.5	32.5	15	24
IPHT10-01(3)	10	R1/8	7.5	18	19	19	63	30.5	19	12
IPHT10-02(3)		R1/4	9.5	18.5	21.5	21.5	69.5	32.5	19	14
IPHT10-03(3)		R3/8	10.5	20.5	21.5	21.5	78	33	19	19
IPHT10-04(3)		R1/2	13.5	25.5	21.5	21.5	81.5	36	19	24
IPHT12-02(3)	12	R1/4	9.5	18.5	21.5	21.5	69.5	33.5	21.5	14
IPHT12-03(3)		R3/8	10.5	22.2	21.5	21.5	78	35.5	21.5	19
IPHT12-04(3)		R1/2	13.5	25.5	21.5	21.5	81.5	36.5	21.5	24
