产品分类：快插式气管接头
产品描述：IPD 螺纹侧三通气管快插接头，多种型号可供选择，广泛应用于各类气动系统，内层镀镍的···

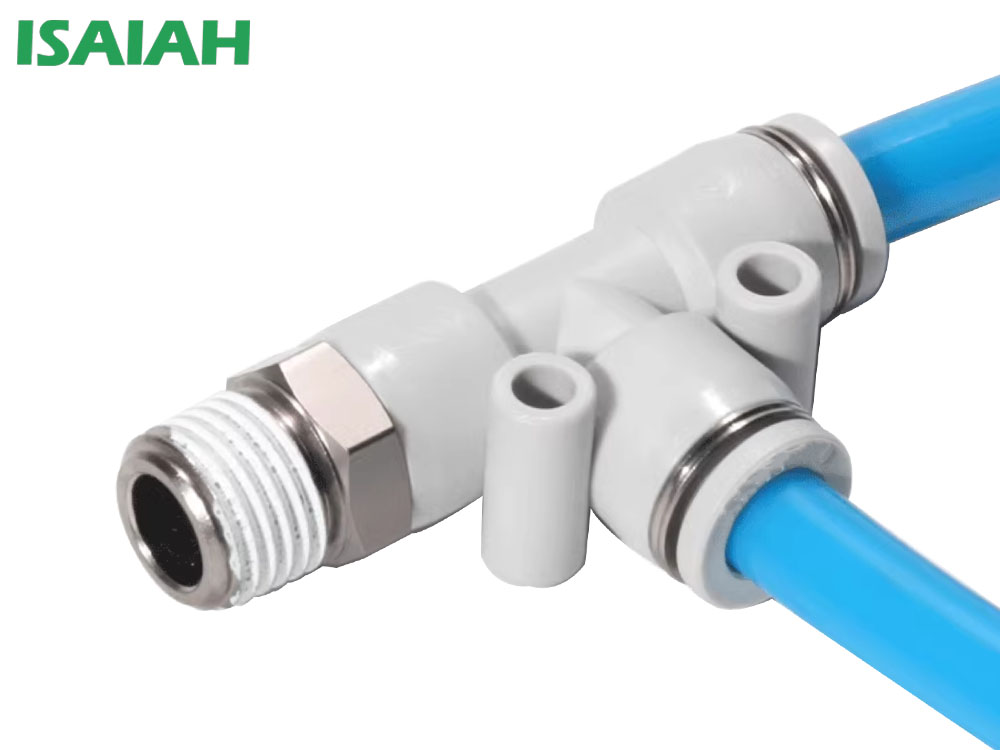

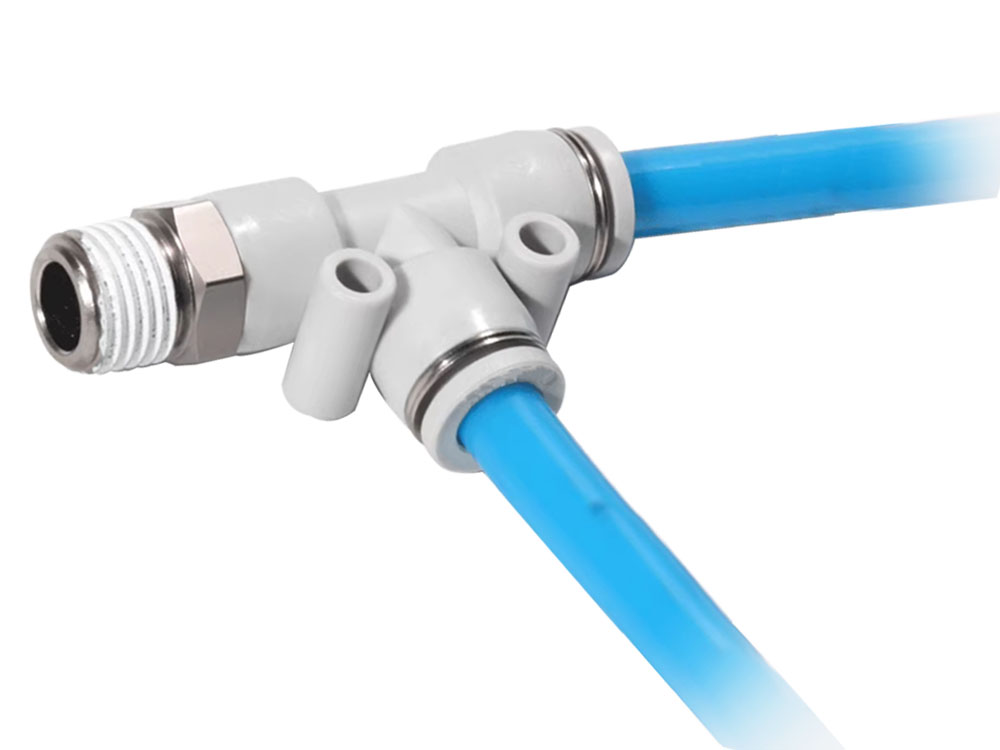

IPD 螺纹侧三通气管快插接头，多种型号可供选择，广泛应用于各类气动系统，内层镀镍的铜体具有抗腐蚀性能，安装便捷，只需将气管插入接头即可达到密封效果，接口可360°旋转，接入气管后气管也可以360°旋转，使用更方便，避免了气管缠绕的烦恼。拔管时按压帽盖即可轻松拔出气管。
IPD螺纹侧三通气动管接头的技术参数：
| ★ 使用流体：空气，真空 |
|
| ★ 工作压力：0~1.0MPa(150psi) | |
| ★ 负压：-100Kpa(-29.5in·Hg) | |
| ★ 耐压：1.5MPa | |
| ★ 颜色：灰色/黑色 | |
| ★ 主体材质：高强塑料+黄铜 | |
| ★ 工作温度：-20至70°C(-4至158°F) | |
| ★ 适用软管：PU及尼龙管 |

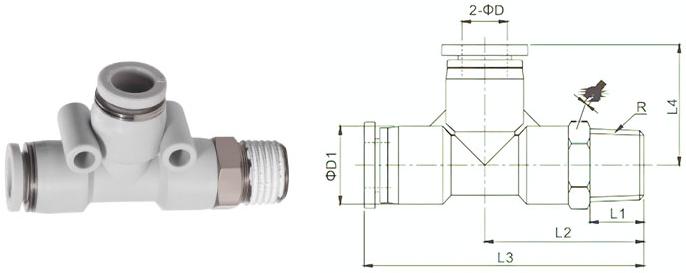

IPD螺纹侧三通气动管接头的规格型号表：
| 型号 | ￠D | R | L1 | L2 | L3 | L4 | ￠D1 |  |
| IPD04-M5 | 4 | M5 | 3.5 | 22.5 | 41.5 | 19 | 11.5 | 10 |
| IPD04-M6 | M6 | 4 | 23 | 42 | 19 | 11.5 | 10 | |
| IPD04-01 | R1/8 | 7.5 | 25 | 44 | 19 | 11.5 | 10 | |
| IPD04-02 | R1/4 | 9.5 | 28 | 47 | 19 | 11.5 | 14 | |
| IPD04-03 | R3/8 | 10.5 | 29.5 | 48.5 | 19 | 11.5 | 17 | |
| IPD06-M5 | 6 | M5 | 3.5 | 23.2 | 42.4 | 19.2 | 13.5 | 12 |
| IPD06-M6 | M6 | 4 | 23.7 | 42.9 | 19.2 | 13.5 | 12 | |
| IPD06-01 | R1/8 | 7.5 | 25.7 | 44.9 | 19.2 | 13.5 | 12 | |
| IPD06-02 | R1/4 | 9.5 | 28.2 | 47.5 | 19.2 | 13.5 | 14 | |
| IPD06-03 | R3/8 | 10.5 | 29.7 | 49 | 19.2 | 13.5 | 17 | |
| IPD06-04 | R1/2 | 13.5 | 33.2 | 52.5 | 19.2 | 13.5 | 21 | |
| IPD08-01 | 8 | R1/8 | 7.5 | 29.5 | 52 | 22.5 | 15 | 14 |
| IPD08-02 | R1/4 | 9.5 | 31.5 | 54 | 22.5 | 15 | 14 | |
| IPD08-03 | R3/8 | 10.5 | 33 | 55.5 | 22.5 | 15 | 17 | |
| IPD08-04 | R1/2 | 13.05 | 36.5 | 59 | 22.5 | 15 | 21 | |
| IPD10-01 | 10 | R1/8 | 7.5 | 35 | 63 | 27.8 | 19 | 17 |
| IPD10-02 | R1/4 | 9.5 | 37 | 65.5 | 27.8 | 19 | 17 | |
| IPD10-03 | R3/8 | 10.5 | 38 | 66.5 | 27.8 | 19 | 17 | |
| IPD10-04 | R1/2 | 13.5 | 41.5 | 70 | 27.8 | 19 | 21 | |
| IPD12-01 | 12 | R1/8 | 7.5 | 36 | 65.5 | 29.5 | 21.5 | 21 |
| IPD12-02 | R1/4 | 9.5 | 38.5 | 68 | 29.5 | 21.5 | 21 | |
| IPD12-03 | R3/8 | 10.5 | 39.5 | 69 | 29.5 | 21.5 | 21 | |
| IPD12-04 | R1/2 | 13.5 | 42.5 | 72 | 29.5 | 21.5 | 21 | |
| IPD14-03 | 14 | R3/8 | 10.5 | 40 | 70 | 30 | 23.5 | 22 |
| IPD14-04 | R1/2 | 13.5 | 43 | 73 | 30 | 23.5 | 22 | |
| IPD15-03 | 15 | R3/8 | 10.5 | 44 | 77 | 33 | 26.5 | 24 |
| IPD15-04 | R1/2 | 13.5 | 47 | 80 | 33 | 26.5 | 24 | |
| IPD16-03 | 16 | R3/8 | 10.5 | 44 | 77 | 33 | 26.5 | 24 |
| IPD16-04 | R1/2 | 13.5 | 47 | 80 | 33 | 26.5 | 24 | |
| IPD16-06 | R3/4 | 15 | 49 | 82 | 33 | 26.5 | 27 |
